Introduction:
1. 49 Sample positions.
2. 56 Reagent positions.
3. 120 Reaction cuvettes.
4. 200 tests per hour.

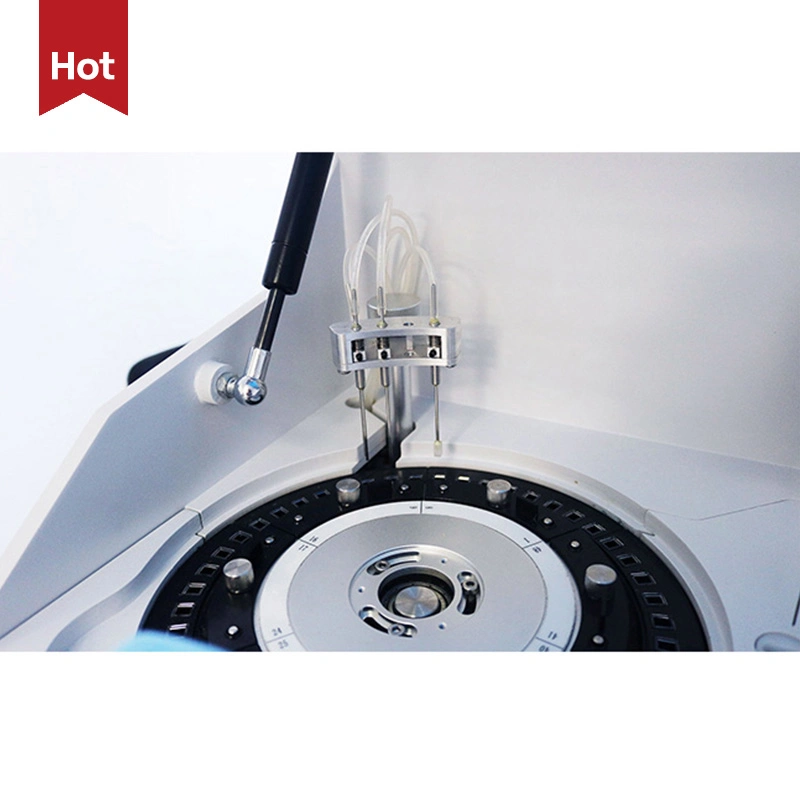

5. Probe with anti-collision function, liquid level dectection function.
2. 56 Reagent positions.
3. 120 Reaction cuvettes.
4. 200 tests per hour.
5. Probe with anti-collision function, liquid level dectection function.
Model | BK-280 | |
Overall Performance | Throughput | 200Tests/Hour |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
Sample & Reagent Unit | Sample Positions | 49 sample positions |
Reagent Positions | 56 reagent positions | |
Probe washing | Automatic washing interior and exterior | |
Reagent Cooling | Refrigerated tray with independent switch | |
Reaction System | Temperature Control | 37±0.1ºC, real-time monitor |
Cuvettes | 120 reusable cuvettes,optical length 6mm | |
Mixer Probe | Independent stirring | |
Washing | Automatic cuvettes washing | |
STAT function | YES | |
Optical System | Light Source | 12V/30W halogen lamp |
Spectrophotometry | Post-spectral spectrophotometry | |
Wavelength | 340,405,450,510,546,578,630,700nm | |
Absorbance | 0~3.0Abs | |
Calibration&QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P,Logit-5P |
Quality Control | Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D) | |
Data Management | Software | Windows 7/8/10, LIS system available |
LIS System | Bi-direction, support HL7 protocol | |
Interface | LAN port access | |
Printer | External, multiple reporting mode available | |
Working Conditions | Power Supply | AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W |
Temperature | 10~30ºC | |
WaterConsumption | Deionized water:5L/H | |
Humidity | 30-80% | |
Size & Weight | External Size (W*D*H) | 950*612*510mm |
Net Weight | 75kg | |
Package Size(W*D*H) | 1118*728*1151mm | |
Gross Weight | 130kg |
