Closed Intelligent Microwave Digestion/Extraction System

Closed Intelligent Microwave Digestion/Extraction System MW-TR-01 Closed Intelligent Microwave Digestion/Extraction SystemTechnical Parameter:Power & Frequency: Program-controlled High-frequency Resonant High-voltage microwave power; Input power:3000W; Industrial-grade Double -magnetron Microwave Output power, 0-24

Featured Products

Closed Intelligent Microwave Digestion/Extraction System

Closed Intelligent Microwave Digestion/Extraction System

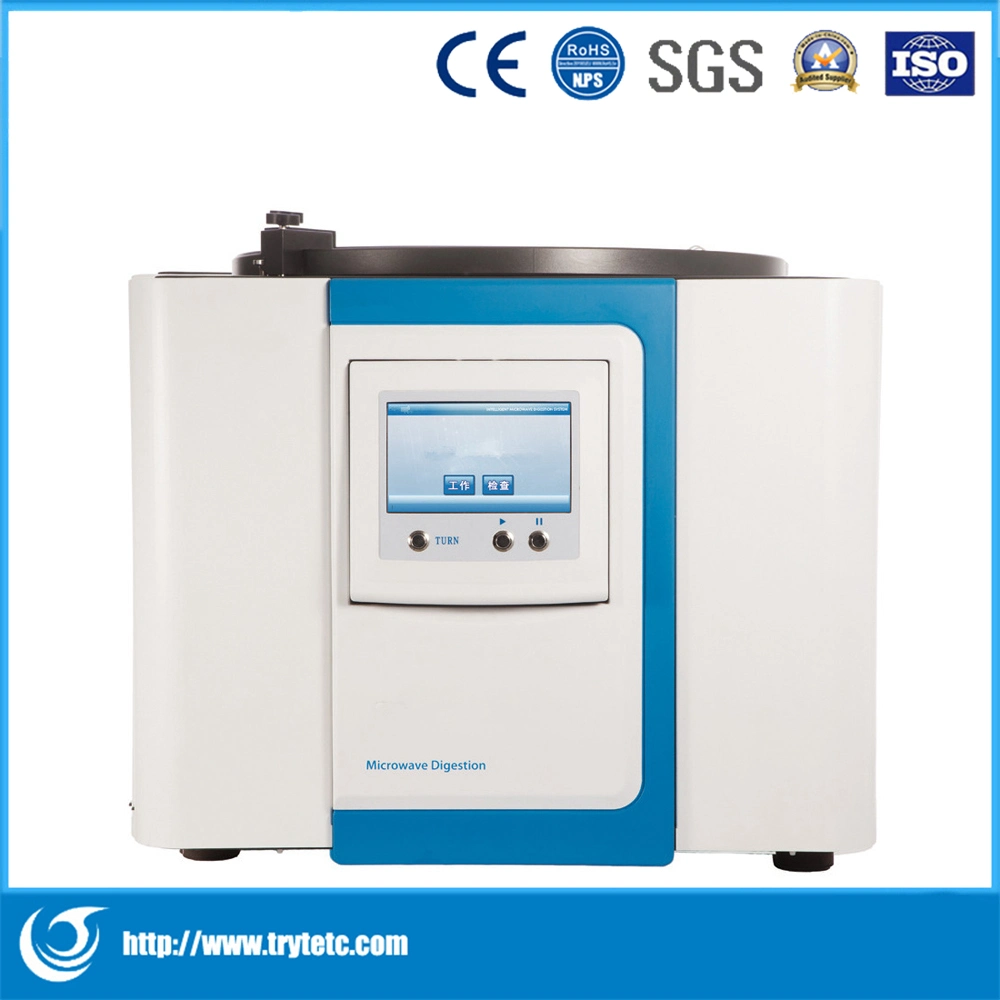

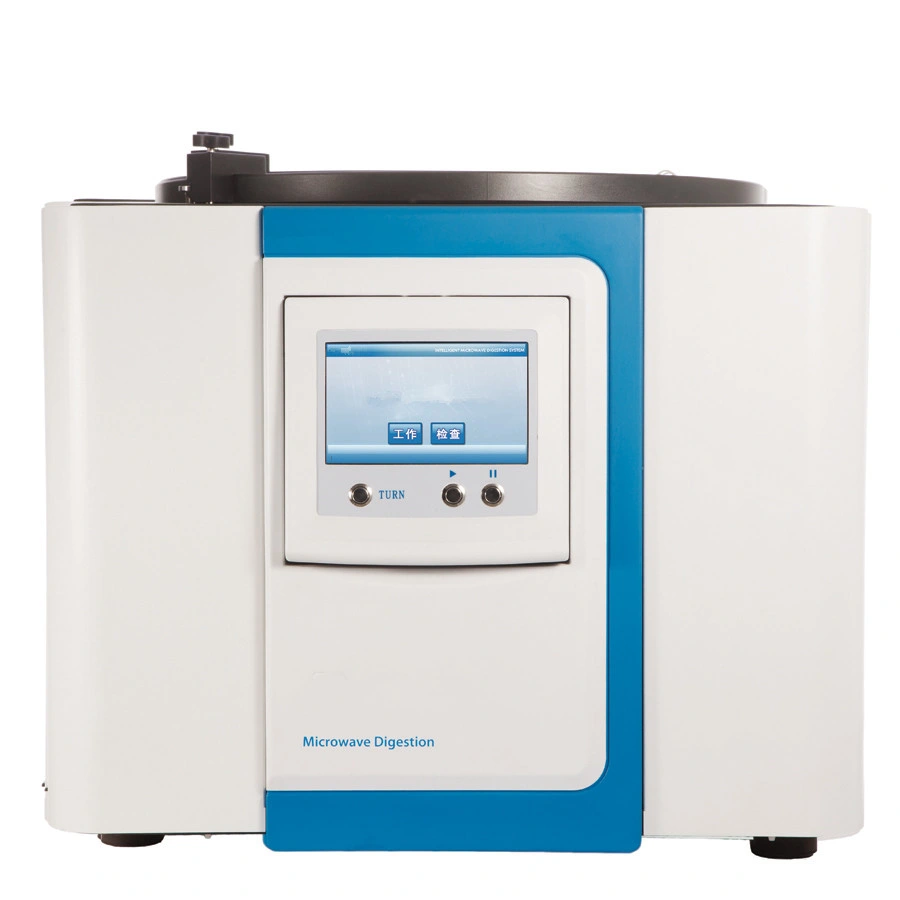

MW-TR-01 Closed Intelligent Microwave Digestion/Extraction System

Technical Parameter:
Power & Frequency: Program-controlled High-frequency Resonant High-voltage microwave power; Input power:3000W; Industrial-grade Double -magnetron Microwave Output power, 0-2400W(Control at Will); Microwave frequency, 2450MHz .

Microwave Furnace Chamber: Stainless Steel Cylindrical Furnace Chamber Volume, 75L; Multi-layer PFA Coated Inside; Long Product Life Time and Easy-to-clean.

Volume And Number of Sample: Vessel Volume, 100mL/Vessel; 1-16 Vessels at one time.

Sample Input Mode: Lift-type Sample Input Platform: Overhead-type rotatable furance door design, easy to input and take out vessel with lift-type sample tray.

Pressure Monitor: Non-conatct Pressure Sensor Monitor, Developed from techonolgies of Phial-form Metal Clips with High Elasticity, Optical Ranging System and etc. The Pressure Sensor could real-time scan and monitor every vessel's pressure with a visual pressure curve display.

Temperature Monitor: Special Non-contact Middle Infrared Temperature Monitor, real-time scan and monitor ample solution temperature with a visual temperature curve display.

T-P Meaurement: Temperature Range, Room Temperature~400ºC( ±1ºC); Pressure Range, 0~10Mpa(±0.01MPa)

High-Pressure Digestion Vessel: Frame-style High-pressure Digestion Vessel, PEEK for exterior vessel, TFM for inner vessel; Working Pressure, 0~6Mpa, Maximum Pressure≥15Mpa; Working Temperature, 0-250ºC, Maximum Temperature≥300ºC

Working Mode:1) Able to create, edit and save more than 256 kinds of digestion methods. 2) Maximum 10 digestion steps setup for every method. 3) The intellingent heating reate control mode and thermostat control mode are bulit in.4) The acutomatic colling mode is also bulit in with the function theat cooling stop condition is adjustable.

Multiple saftety Precautions: More than 10 active and passive security functions inclduing: 1) Industrial-grade Cylindrical Furnace Chamber and Overhead-type Explosion-proof Door Design. 2)Real-time monitor of temperature and pressure for every digestion sample. 3) Over-pressure alarming limit. 4) Elastic pressure-controlling protection device. 5) Overheat and over-current protection. 6) Abnormal noise detection protection. 7) System failure self-check and warning. 8) High-temperature and high-pressure resistant framework for digestion vessel. 9) Non-destructive pressure-realeasing groove. 10) Three powerful centrifugal exhaust fans (exhaust capacity, 5.8m3/min) to protect operator from harmful gas.

Intelligent Control: Visual and convenient to use with full touch screen, Display working parameter any in real time(temperature, pressure curve and tec); Standard RS232 interface provided for the connection with PC.

Other Parameter: Power, 110/220V AC, 50/60Hz ; Size, 650×630×570mm; Net weight, 70Kg.


Packing:

Closed Intelligent Microwave Digestion/Extraction System

Company Information:

      As a diversified manufacturer of high-tech products, it was founded in 1999, and devoted to the products, sales and technical service for various industries and fields like Energy analysis instrument, Oil, coal, steel, and geology; medical analysis and application instruments, biochemistry analyzer, elisa reader, blood analyzer,and urine; as well as laboratory application instruments,autoclave/sterilizer,freeze dryer, incubator,drying oven,balance,ICP,DRS,HPLC,gas chromatography,and spectrophotometer,meanwhile,TRYTE Technologies integrated and purchased some companies of PCB board, highway instruments at home and abroad. Our company has become the "one stop" instrument procurement service provider worthy of the name.
      TRYTE technologies (TRYTE) mainly sell products by selling direct to customer, but also through distributors, resellers and manufacturer representatives, telephone sales and e-commerce sales, customers cover all over 80% of the world's countries and regions.TRYTE have solutions with rules adaptability according to the specific requirements of the design, from the instrument to some laboratories or departments.Whichever kind of solution you choose, you can fully trust it, because it is proved from 100, 00 successful results, leading development process, and decades of actual certification experience.
Closed Intelligent Microwave Digestion/Extraction System



Why choose us?

1. We supply high quality products with reasonable price.
2. We are the professional manufacturer;
3. Advanced production machine;
4. Strict quality control system;
5. Ten people research&develop team;
6. We have professional sales team;
Closed Intelligent Microwave Digestion/Extraction System
