Product Introduction:
Water hardness refers to the total concentration of calcium and magnesium ions in water samples, which is an important indicator of water quality. This instrument uses the electrode method test, proved by a large number of experiments, it has the same accuracy with EDTA volumetric titration, and can avoid the many disadvantages of EDTA titration method, such as the trouble of operation, the judgment of the end point of uncertainty, and is not suitable for turbid Used with colored water samples.
Feature:

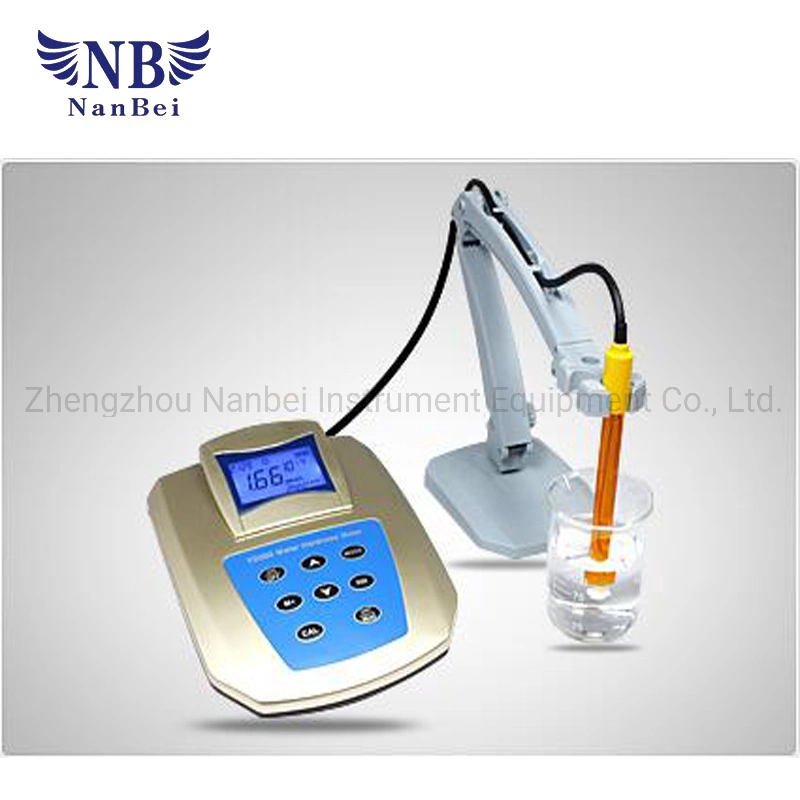

Benchtop meter for measurement of water hardness (the total concentration of calcium ion and magnesium ion). |
Electrode adopts model 601-F water hardness combination electrode with patent structure. It consists of measurement electrode, reference electrode and temperature probe. Replaceable measuring head, steady potential, fast response, easy to use. |
Meter adopts intelligent chip design, automatic calibration, automatic temperature compensation, time display, data storage RS232 output, etc. |
Ability to switch among eight units: mmol/L, mg/L (CaCO3), mg/L (CaO), mmol/L (Boiler) and mg/L (Ca). Three options of three units: ºfH(France),ºdH (Germany)and ºeH(UK) from WH-Link communication software. |
Equipped with B1,B2 and B3 calibration solution. |
Equipped with WH-Link communication software, connect testing data of meter to computer. |
Specification:
Water Hardness | Measuring range | (0 ~ 10)mmol/L; (0 ~ 401)mg/L(Ca); (0 ~ 1000)mg/L(CaCO3); (0 ~ 100)ºfH(France Degree); (0 ~ 561)mg/L(CaO); (0 ~ 56)ºdH(German Degree); (0 ~ 20)mmol/L(Boiler); (0 ~ 70)ºeH (England Degree). |
Resolution | 0.01 and 0.1 water hardness units | |
Accuracy | ±5% FS | |
Temp.compensation | (5 ~ 50)ºC((automatic)) | |
Calibration Solution | B1 Calibration Solution - 2.00×10-2 mmol/L B2 Calibration Solution - 2.00×10-1 mmol/L B3 Calibration Solution - 2.00 mmol/L (B3Calibration Solution also can be used for the soaking solution of electrode) | |
Calibration Mode | (a)B1/B2 Calibration-using B1 and B2 Calibration Solution,suitable for < 2.00×10-2 mmol/L low concentration water quality,for example, boiler water. (b)Calibration-using B2 and B3 Calibration Solution,suitable forgeneral water quality. | |
Temperature | Measuring range | 0 ~ 60ºC |
Resolution | 0.1ºC | |
Accuracy | ±0.5ºC | |
Other Technical Parameter | Data storage | 128 groups |
Content Storage | serial number of measuring value, measuring value, units, temperature, ATC or MTC, date, time and calibration way. | |
Communication Connector | RS232 | |
Power | DC9V | |
Dimension and weight | (160×190×70)mm/750g | |
Quality and safe certificate | IISO9001:2000 and CE | |
working conditions | Ambient temperature | (5~35)ºC |
ambient humidity | ≤85%RH |
Standard kits:
1. Model YD300 water hardness meter 1set
2.Model 601-F water hardness electrode(With two measruing heads and one screw plug ) 1pc
3. Model 602 Flexible electrode holder 1pc
4.250mL water hardness calibration solution (B1, B2 and B3) 1btl/each
5.20mL test cup 4pcs
6. Test cup pedestal 1pc
7. WH-Link communication software 1 pc
8. RS-232 communication cable1pc9. Operation manual 1book
