Product Introduction

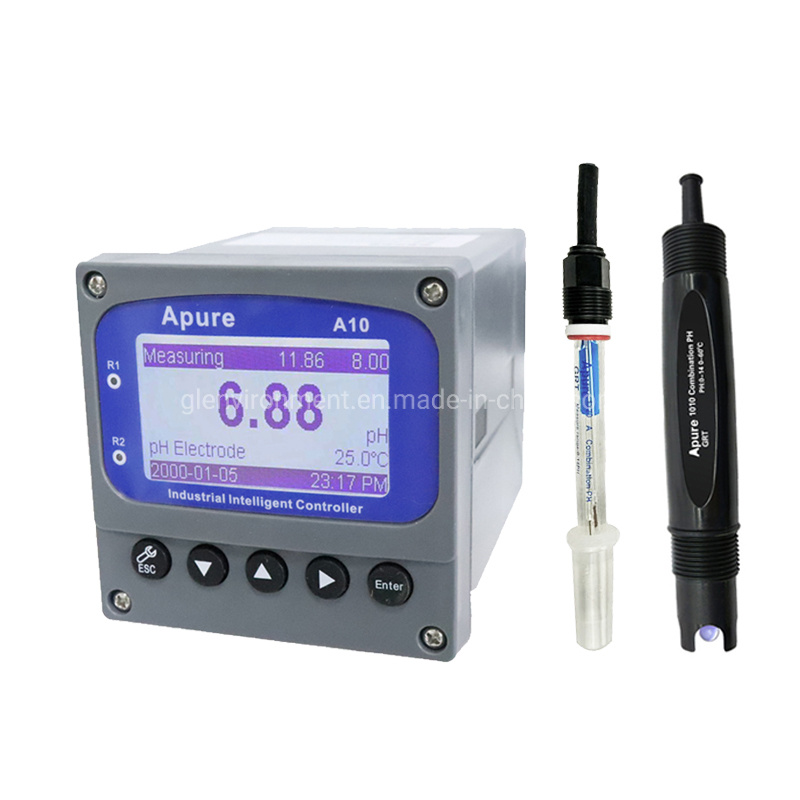

Apure A10 series PH/ORP controller is an intelligent on-line chemical analysis instrument. It can continuously monitor data and realize remote transmission monitoring and recording. It can also connect to the RS485 interface. You can also easily connect to a computer using the 4-20ma protocol.
High-definition screen
4-20mA or RS485 signal.
2.4 inch screen display.
Switch in English and Chinese.
High-low alarm relays.
2.4 inch screen display.
Switch in English and Chinese.
High-low alarm relays.
Measurement reference isolation
Increase the input signal insulation, to eliminate the signal interference.
Automatic programmable compensation standard.
Automatic programmable compensation standard.
Technical Parameter | |
Sensor input range | 0.00 ~ 14.00 PH |
Accuracy | 0.02PH |
Stability | ± 0.1PH |
Display | Back light 3.5-bit LCD |
Temperature comp | Automatic programmable compensation standard Temperature: 0-60 |
Electrode | 0.05cm-1 sanitary grade electrode,1/2" thread |
Cable length | 10m or others(5~30m) |
Current output | Isolated 4-20mA current output Environmental conditions: |
Humidity | ≤ 85%RH |
Control output | Relay control output, Hi,Lo,on,off |
Power supply | AC 220V ±10% 50HZ and DC 24V |
Environmental conditions | temperature : 0~50°c; Humidity : ≤85%RH |
Dimensions | 96× 96 × 130mm (height × Width × Depth) |
Panel cut-out | 92X92mm |
Installation | Cut-out Fit-In |
